Sensata > Products > Circuit Breakers > Automotive > EXT500

Automotive Circuit Breakers

EXT 500 Series

Overview

Data Sheet (PDF)

•	SAE Type 1 (cycling)
•	Multiple bimetallic resistivities available
•	Metal Encased
•	Multiple terminal configurations available
•	Ambient compensated
Benefits:
•	Can be mounted in the fuse block or elsewhere in the wiring harness
•	Protected from abuse and contamination of the contact surface
•	Meets longer life cycle requirements
Sensata Technologies’ EXT 500 Series of circuit breakers are designed for wiring harness protection in 12 Volt automotive applications. The device protects circuits which occasionally experience momentary overloads and applications where self-resetting devices are preferred. The EXT 500 is sensitive to both over-current and over-temperature fault conditions. The unique arrangement of two opposing bimetallic elements results in a device that is insensitive to momentary overloads. Sensata Technologies is an ISO and TS registered company providing world class quality products.

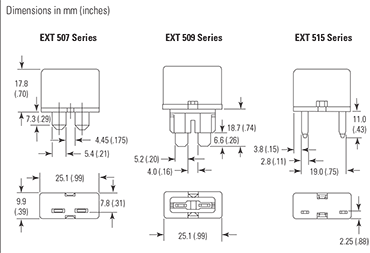

General Envelope Dimensions, mm (inches) Nominal dimensions provided for reference only.

Have a question? Email Klixon now. Click here.

Peerless Electronics Inc.
700 Hicksville Road
Suite 100
Bethpage NY 11714
Phone: 516-594-3500
Phone: 800-285-2121
Fax: 516-593-2179

Trip Curve

Diagram: Approximate effect of ambient temperature on ultimate trip

General Specifications
•	Nominal Operating Voltage	12 Volts DC
•	Typical voltage drop at operating temperature	200 mV max
•	Typical ambient temperature range	-40ºC to 85ºC

These curves are to be used only as a guide in selecting a protector for a particular application. Factors such as distance from the heat source and the method of mounting should be considered in selecting a protector. Final trip times are dependent upon terminal configuration and mounting in the application.

All Sensata Circuit Breakers do not contain any hazardous materials and are 100% in compliance with the Substance of Concern (SoC), ELV and RoHS directives.
